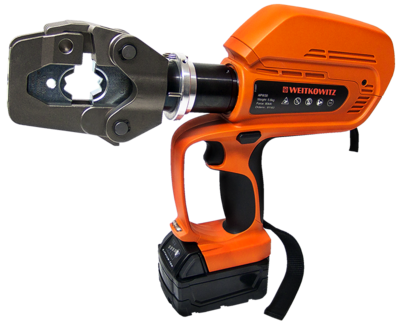

Battery-powered hydraulic compression tool for crimping cable lugs and connectors up to 400 mm2.
- extremely quick processing due to a two-stage hydraulic pump
- 360° revolving head with quick opening and closing
- wide application range up to 400 mm suitable for cutting cables
- up to 28 mm outside diameter
- integrated pressure relief valve, false pressings cause no damage
- at tool nor dies
- lithium-ionen-battery without memory effect,
- self-discharges very low
- high capacity due to 3.0 Ah-battery
- eyelet balancer and carrying strap available
- ergonomic handle with a balanced weight distribution for sure
- work free of tiredness
- case, handle shell and pressure discharge key completely from
- isolated and push-firm plastic material
- integrated electronic module for:
- • permanent accumulator-loading state control
- • supervision of the working process and state announcement
- • announcement of the next service interval
- • mistake announcement at possible disturbances
- delivery completely with battery, battery charger, supporting
- loop for transport and safety, transport plastic caseund Zustandsanzeige
- Anzeige des nächsten Service-Intervalls
- Fehleranzeige bei evtl. Störungen
technical data |
|
press capacity |
ca. 80 kN |
operating voltage |
14,4 Volt |
tool measurements |
95 x 406 x 310 mm |
weight |
5,4 kg (inkl. Akku) |
battery charger |
220–240V, 50–60Hz, 7,2-18V |
loading time |
ca. 50 minutes |
- delivery completely with battery, battery charger, supporting
- loop for transport and safety, transport plastic case
