APi 40 - WEITKOWITZ Kabelschuhe und Werkzeuge GmbH

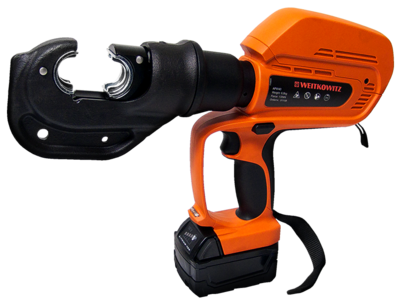

Battery-powered hydraulic compression tool APW 40
art no.: 91198 (without dies)
The electro-hydraulic Battery tool APi 40 with a pressing force of 130 kN was specially developed for the processing of large cross-sections and the resulting heavy usage.
• The C-header to terminals and splices can be quickly and easily load and unload
• In the extra-robust designed press head can be for.example integrate special dies with large press widths. This is a fast paced work permit even with large cross sections.
• The handy tool is ideal for small work spaces
| Technical data | |
|---|---|
| max. Hub | 42 mm |
| head open | 42 mm |
| press capacity | 130 kN |
| tool measurements | 95 mm x 430 mm x 310 mm |
| weight | 6,5 kg |
| operating voltage | Lithium-Ionen-Technologie 14,4V, 3,0Ah |
| battery charger | 220–240V, 50–60Hz, 7,2-18V |
| loading time | appro. 50 minutes |
