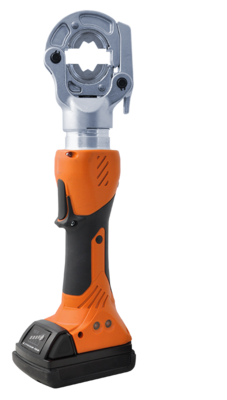

STILO 20 – hydraulic battery tool 60 kN

art no.: 91148  (without dies)
art no.: 91101  Replacement (Li-Ionen 18V, 1,5 Ah)

Battery-powered hydraulic compression tool for crimping cable lugs and connectors up to 300 mm²

Characteristics :

  • extremely quick processing due to a three-stage axial piston pump
  • wide application range up to 150 mm²
  • 270° revolving head with quick opening and closing
  • automatic pressure limits and monitoring through pressure sensor
  • engine shutdown and automatic retract after completed pressing
  • manual retract with button
  • save of all crimps and error messages on internal memory
  • selections of all cycles and error messages about USB interface
  • no uncompleted pressing cycles through ongoing monitoring of the rest battery cargo load
  • controlled engine drive to the life extension of gearbox, engine and battery
  • integrated service management and software updates about the USB interface
  • fast tool return pipe through high return flow volume
  • sleep-mode; maintenance indication and battery control
  • integrated, intelligent electronics assembly with multifunctional LED
  • mini-USB interface for all standard computer systems for:
  • Li-Ion battery with charge level indicator: 18 V 1.5 Ah
  • max. piston stroke: 16 mm; press capacity: 60 kN
  • measurements: 385 x 125 x 80 mm
  • weight incl. battery: 3.3 kg
range of application cross section mm²
Dies, WM-shape for standard-series 300 mm²
Dies, WM-shape for cable lugs and connectors, flexible copper cables 240 mm²
Dies, hexagonal-shape for compression cable lugs (DIN 46235) + connectors (DIN 46267) 300 mm²
Dies, hexagonal-shape for Aluminium cable lugs and connectors 300 mm²
Dies for rounding sector-shaped copper and aluminium conductors 240 mm²
Dies, mandrel-shape for crimping non insulated terminals DIN 46234 120 mm²
Dies, for crimping insulated terminals 95 mm²
Dies square-shape for crimping cord-end-sleeves 240 mm²

Delivery completely:

  • Hydraulic tool including 1x battery and 1x battery charger
  • Manual
  • Software
  • USB connection cable
  • Carrying bag without dies
