Special crimping tool series for solid conductors - WEITKOWITZ Kabelschuhe und Werkzeuge GmbH

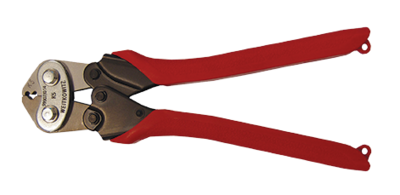

Special crimping tool series for solid conductors 4, 6, 10 or 16 mm2
Special crimping tool for crimping solid conductors in combination with the following series of cable lugs and connectors. A releaseable ratchet guarantees a permanent high quality crimping result.
The extremely small crimping head enables convenient working even in areas difficult to reach.
Crimping shape: special mandrel-shape
length: 275 mm
weight: 0,52 kg
Four different versions are available:
| cross section mm² | die code no. | applicable for series | art.-no. |
|---|---|---|---|
| 4 | - | Standard - Serie | 99903 |
| 6 | 5 | DIN 46235/DIN 46267 Teil 1 | 99907 |
| 10 | 6 | DIN 46235/DIN 46267 Teil 1 | 99904 |
| 16 | 8 | DIN 46235/DIN 46267 Teil 1 | 99905 |
