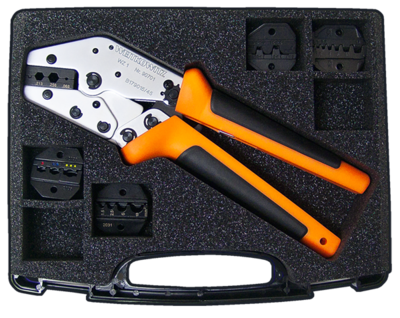

Crimping tool set WZ 1

art.-no.: 90701

Crimping tool set with changeable dies for crimping all common crimp contacts.





  • very good cost-performance Ratio
  • quick and easy change of dies because of
  • quick-locking mechanism
  • all components of the set are kept in a high quality
  • transport box with inlay out of foam material

Set consists of:

basic tool:

  • matt chromium-plated, with releaseable locking device,
  • adjustable crimping pressure, 2-components-handle

pressing dies

  • for insulated terminals, connectors and disconnectors, etc. of 0.5 to 6 mm²
  • for noninsulated terminals, cable lugs, etc. of 0.5 to 10 mm²
  • for cord-end-sleeves of 0.5 to 16 mm²
  • for noninsulated male and female disconnectors of 0.5 to 2.5 mm², tab width 4.8 mm² + 6.3 mm²
  • for BNC and TNC coax connectors RG58, RG59, RG62 and RG71 conductors

length: 250 mm , weight: 0,59 kg
