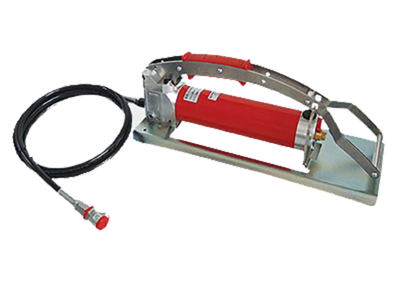

Hydraulic Foot Operated Pump FPW 70

art no.: 91401

Designed to operate hydraulic Tools up to 700bar(70Mpa)

Technical Characteristics

• Compact Dimensions
• Lightweight due to use of light alloys and corrosion-resistant materials
• Handy and stable due to a firm fitting pedal and sturdy non slip base
• Automatic two speed device (fast advancing under no-load and slow
under load)
• Tilting system for coupler (not on models “-EC”)
• Pressure monitoring by oil pressure gauge (not on models "-EC")
• Manual pressure release at any time
• High mounted quick release coupling with dust cap
• Operating pressure: 700 bar (70 MPa)
• Low pressure pump capacity: 18,3 cm³/corsa
• High pressure pump capacity: 2 cm³/corsa
• Oil quantity: 1200 ml
• Operating temperature: -20°C fino a +40°C

Tool dimensions: 570 x 230 x 209 mm
Tool weight: 9,6 kg

Set Equipment FPI70:
• Foot operated pump with oil pressure gauge
• Metal case
