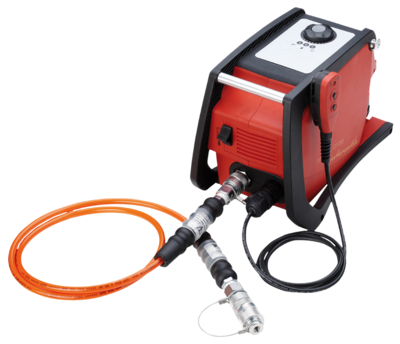

CP700EC - WEITKOWITZ Kabelschuhe und Werkzeuge GmbH

Technical Characteristics:

• • Light, compact and robust structure
• • Ergonomic design for right or left handers
• • Possibility to carry the special transportation bag with additional (optional)
• pockets, with a shoulder strap or attached to a belt (optional)
• • Manual or automatic return
• • Rapid return of piston, thanks to high return capacity
• • Free pressure calibration (only mod. CP700)
• • Freely programmable pump (only mod. CP700)
• • Preinstalled standard programs for cutting and crimping
• • Maintenance program (only mod. CP700)
• • Possibility to setting up maintenance times (only mod. CP700)
• • Electronic sensor pressure control
• • High performance lithium ion accumulator
• • Charge indicator on the accumulator
• • Double piston technology for rapid high pressure feed
• • Capacity within the range of low pressures < 100 bar: 1.2 lit./min.
• • Capacity within the range of pressures up to 700 bar: 0.2 lit./min.
• • Operating pressure: ......................700 bar (70 MPa)
• • Power: ............................................200 W
• • Accumulator voltage: ...................18,0 V DC
• • Accumulator capacity: ..................3,0 Ah
• • Range of use: ................................-20°C / +55°C (integrated cooling system)
• • Remote control (1.5 m) two buttons and LED indicator
• • Possibility to attach the remote control unit to the apparatus, belt or
• shoulder strap with a clamp support, on buttons (Ø 18.7 mm) through a
• magnet on flat and rounded surfaces
• • Anti-scratch and shock resistant display protection (only mod. CP700)
• • Current and required pressure visible on display (only mod. CP700)
• • Error indication
• • Possibility of reading the curves on the pump (only mod. CP700) and on the PC
• • Possibility of reading all the cycles and error indications by USB
• • Including Software
• Tool dimensions: 290 x 190 x 205 mm
• Tool weight: 4,5 kg
